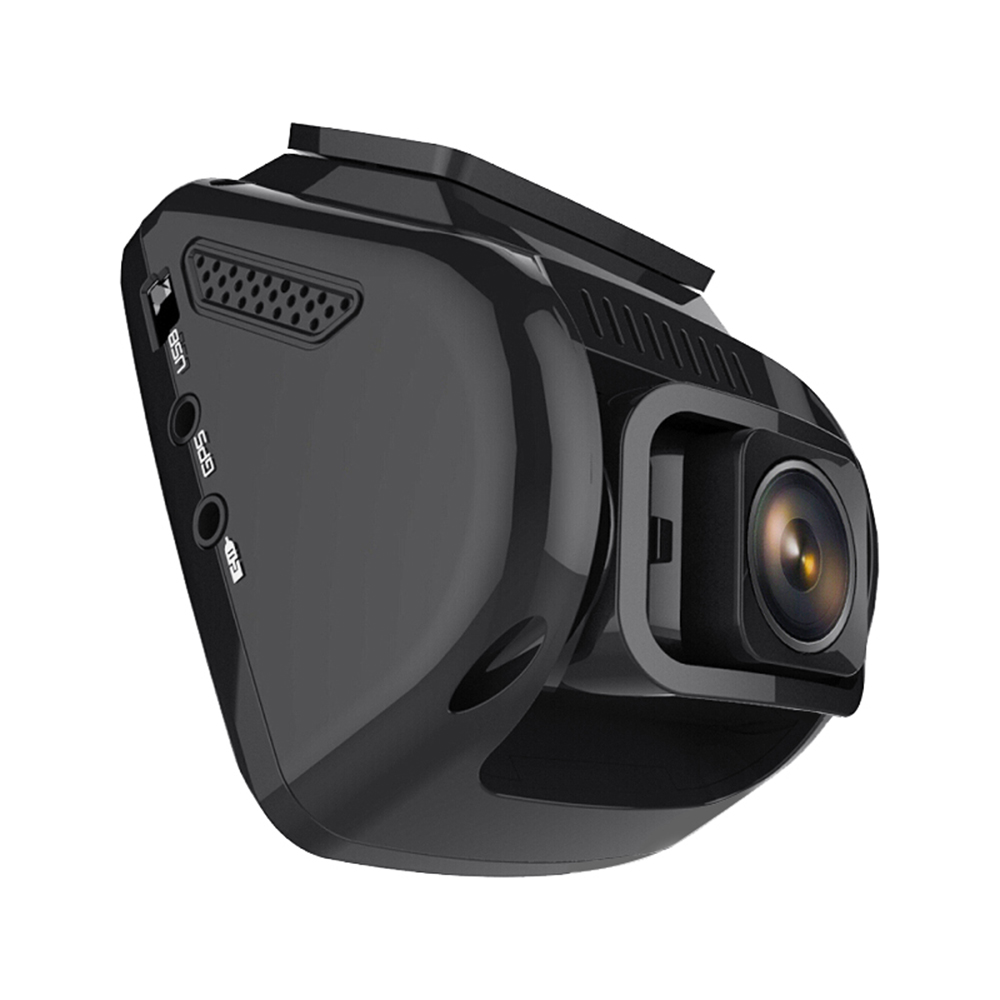

Dash

4K ULT HD CAR DVR

T690C

Exclusive private mold

NTK96663 Chipset

Dual Sony IMX323 CMOS

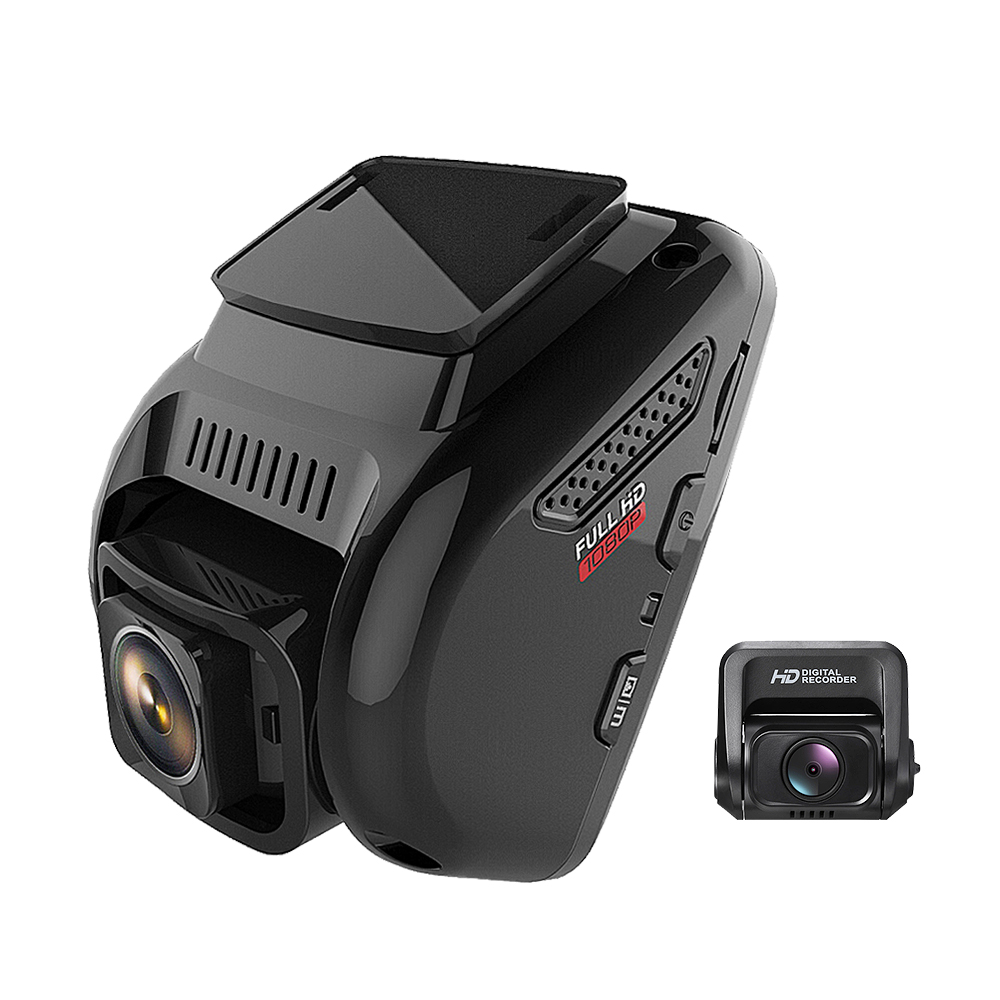

4K Single camera; Dual 1080P cameras

LVDS digital signal rear cam, better image quality

Support WIFI (Optional)

Built in GPS, easy installation

High-temperature resistant ABS Material

Built-in super capacitor, more safe and reliable

Built-in button battery, time setting can be saved for a long time

The lens can rotate up and down,left and right

Specification

Processor:

Novatek96663

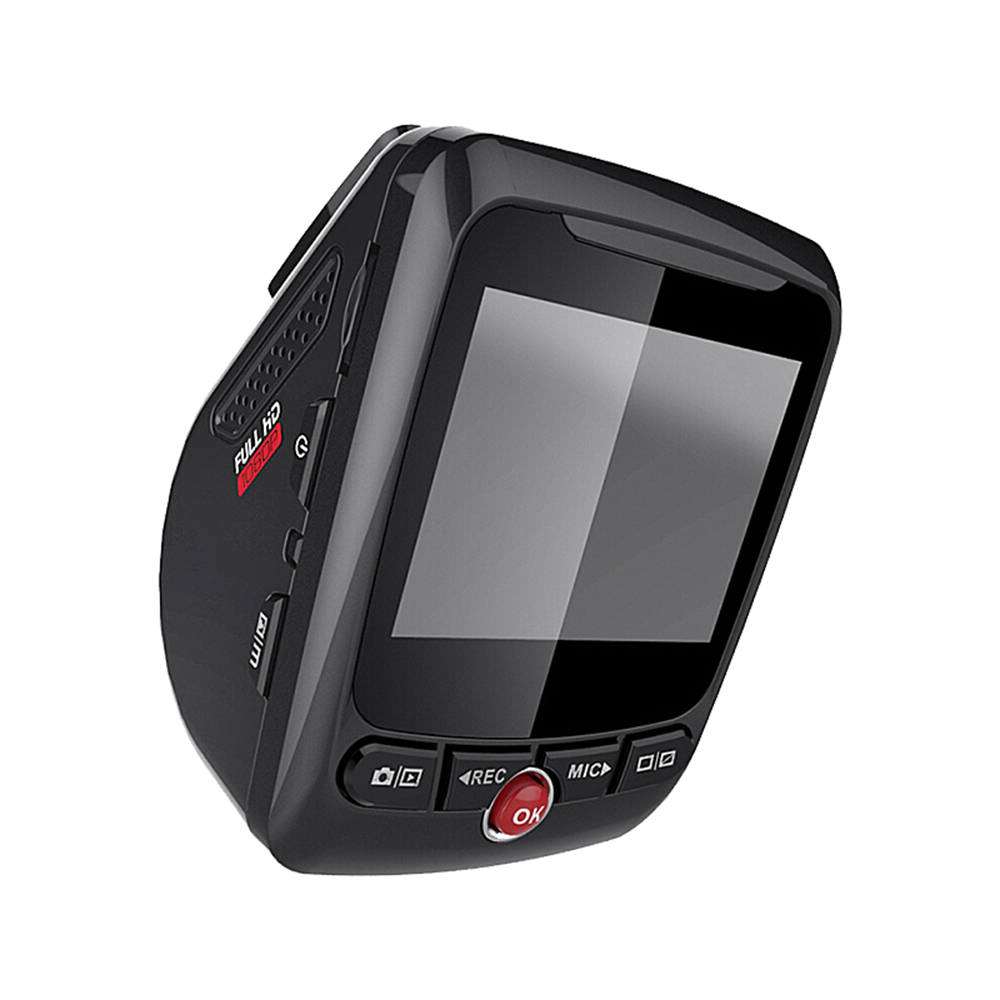

Screen:

2.31 4:3 Screen

CMOS Sensor:

Front Cam: Sony IMX323,2MP
Rear Cam: Sony IMX323,2MP

Lens:

Front Cam: FOV(D=141°,H=117°,V=61°) F/NO=1.8
Rear Cam: FOV(D=141°,H=117°,V=61°) F/NO=1.8

Format:

Front Cam: 4K 2880*2160P @24fps (Front cam only)
2K 2560*1440P @30fps(Front cam only)
1920*1080P @60fps (Front cam only)
1920*1080P @30fps (4k and 2K is by software interpolation)
Rear Cam: 1920*1080P @30fps LVDS digital signal

Loop Recording:

Support

Format:

H.264

G-sensor:

Support

Motion Detect:

Support

Language:

English, Japanese, Russian, German, Thai, Chinese, etc

Microphone:

Built-in

WIFI:

Support(Optional)

GPS:

Built-in GPS(Optional)

Time lapse:

Support

Storage:

TF Card, 8G~256G(Class 10 + )

Built-in power:

Super Capacitor + button cell

Parking mode:

Support (Need additional hardware kit)
